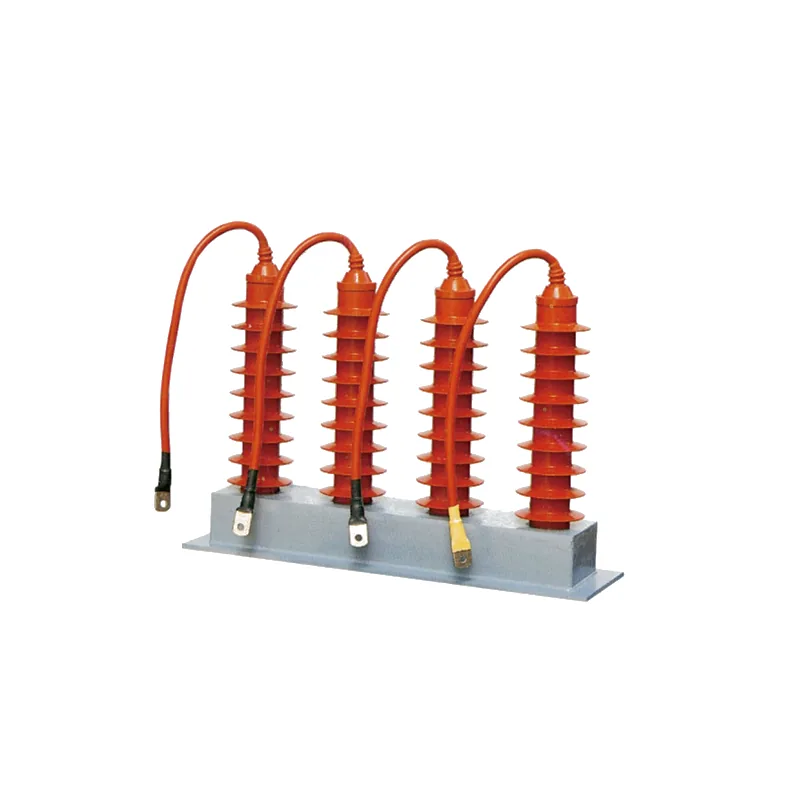

TBP overvoltage protector (outdoor / 35 kV type TBP-100W1/280W2/200)
Outline & Installation Dimensions
TBP-100W1 for outdoor use of 10 kV and below
| Product type | Height H(mm) |
|---|---|
| 10kVWith gap | 390 |
| 6kVWith gap | 390 |
| 10kVGapless | 370 |
| 6kVGapless | 350 |
TBP-280W2 for outdoor use of 10 kV and below
| Product type | Height H(mm) |
|---|---|
| 10kVWith gap | 400 |
| 6kVWith gap | 275 |
TBP-200 for 35 kV and cubicle useThe TBP-100W1/280W2/200 overvoltage protectorcovers three specifications, 100W1, 280W2 and 200, and is suitable for 10 kV outdoor locations, 35 kV cubicles and similar places.

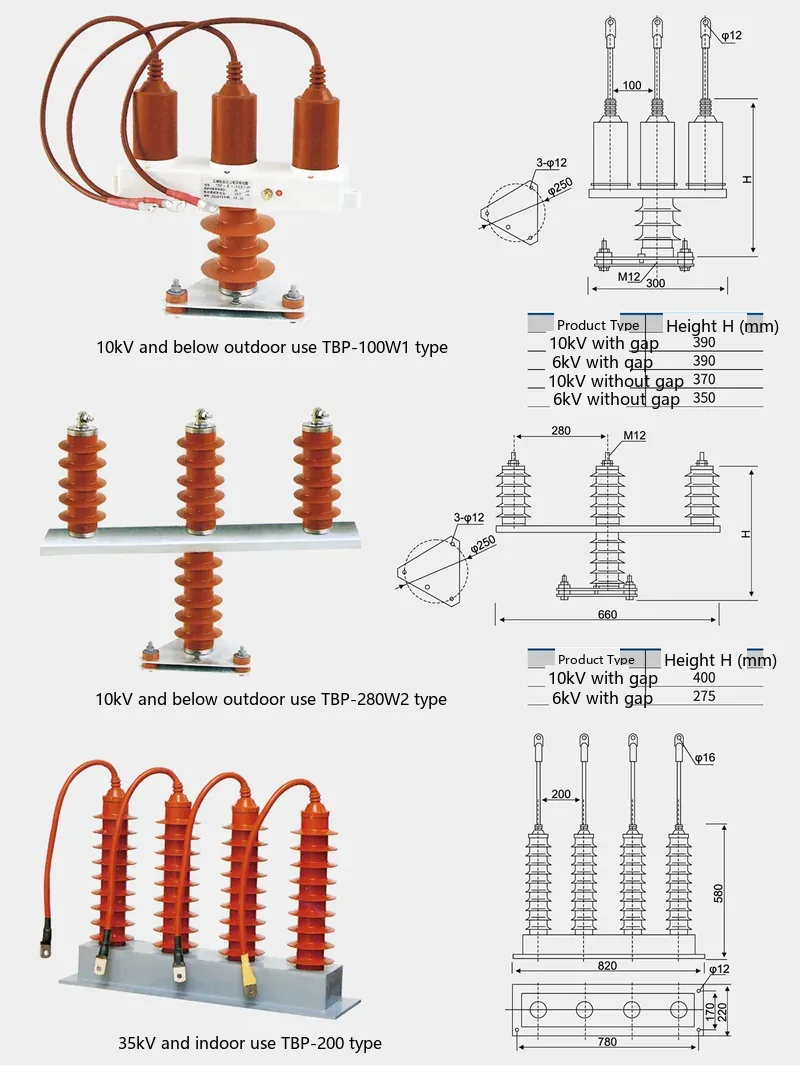

General dimension drawing (TBP-100W1/280W2/200):The figures and parameter tables above give the complete dimensions and installation data of the TBP-100W1/280W2/200 overvoltage protector.
