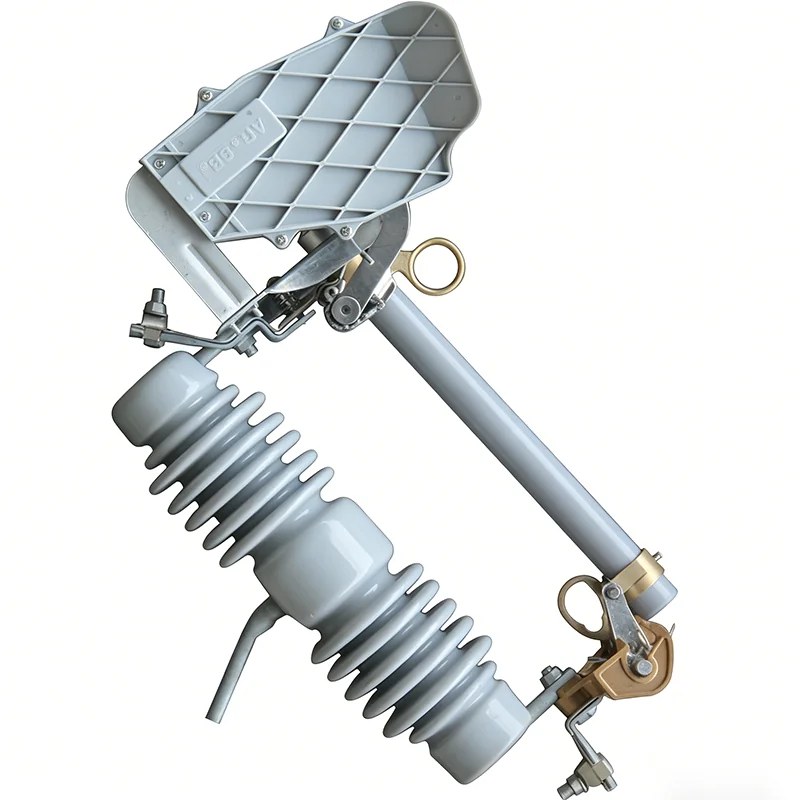

RW12-12F/200A 15kV Drop-out Fuse

RW12-12F/200A drop-out fuse, 15kV rated, 200A, 12500A breaking current, 320mm creepage, for distribution lines with heavier pollution.

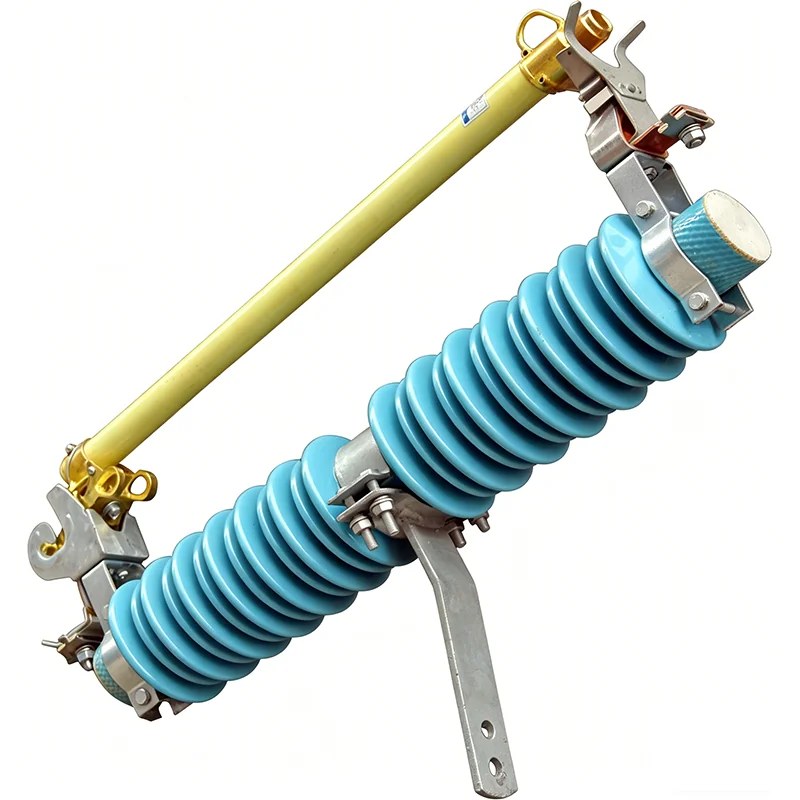

PRWG2-35/200A 35kV Drop-out Fuse

PRWG2-35/200A drop-out fuse, 35kV rated, 200A, 1440mm creepage, for short-circuit and overload protection of 33kV/35kV lines in polluted areas.

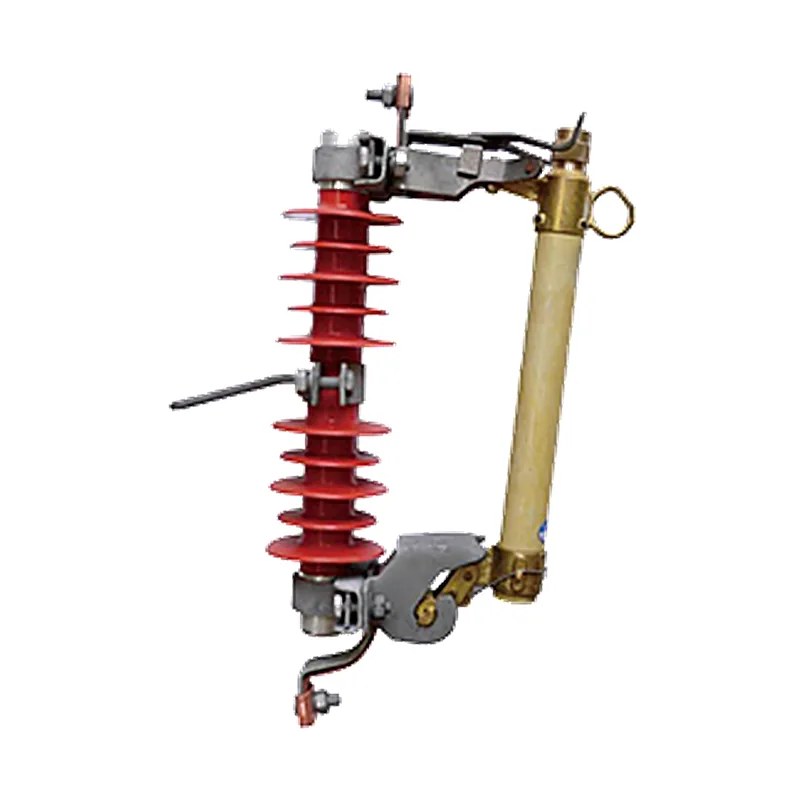

HRW11-12/200A 12kV Silicone Rubber Drop-out Fuse

HRW11-12/200A silicone rubber drop-out fuse, 12kV rated, 200A, 350mm creepage, for short-circuit and overload protection of 10kV/11kV lines in polluted areas.

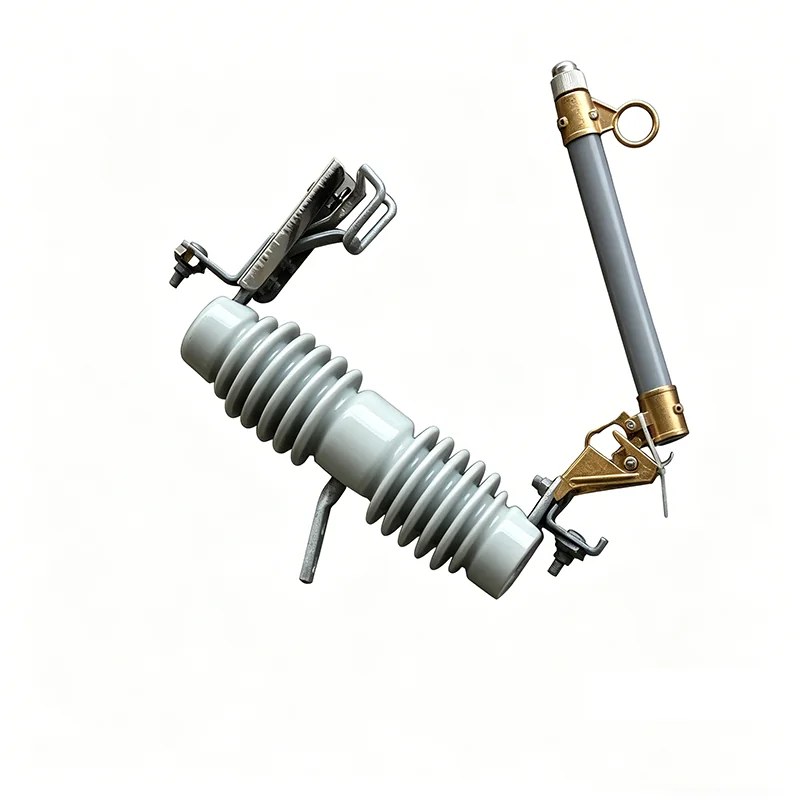

RW12-10kv/200A 10kV Drop-out Fuse

RW12-10kv/200A drop-out fuse, 12kV rated, 200A, 12500A breaking current, 250mm creepage, for short-circuit and overload protection of 10kV/11kV lines.

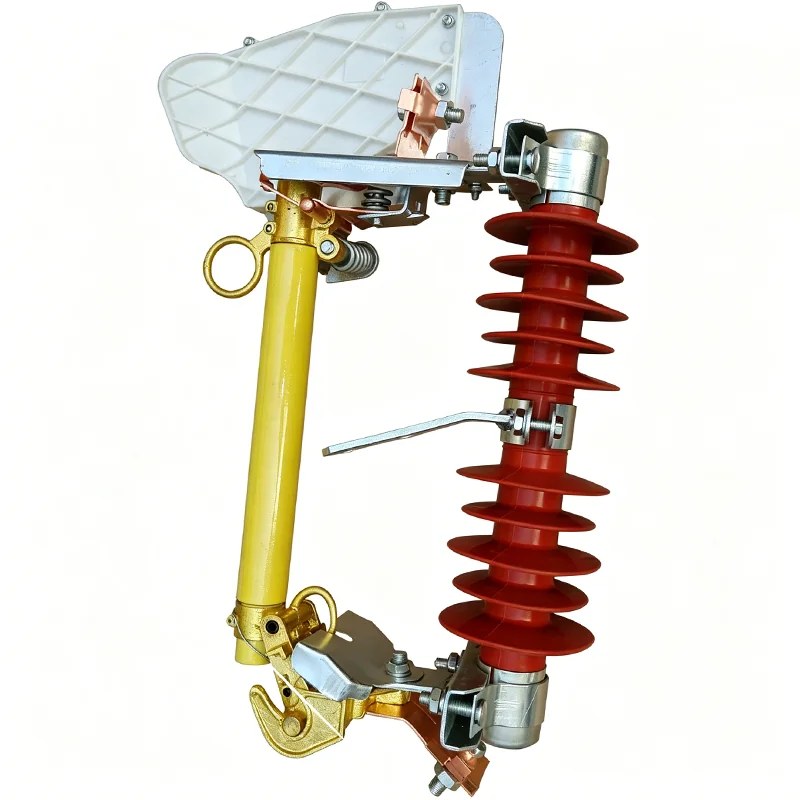

HRW10-12F/200A 12kV Drop-out Fuse

HRW10-12F/200A drop-out fuse, 12kV rated, 200A, 8000A breaking current, 260mm creepage, for short-circuit and overload protection of 10kV/11kV lines.

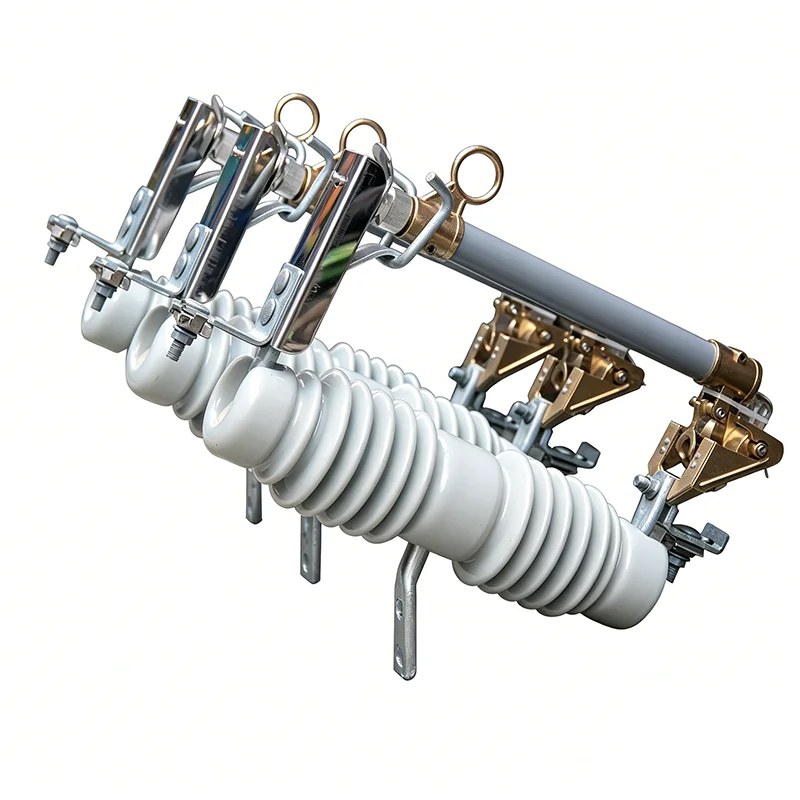

RW12-15/200A 15kV Drop-out Fuse

RW12-15/200A drop-out fuse, 15kV rated, 200A, 8000A breaking current, 260mm creepage, for short-circuit and overload protection of 15kV lines.

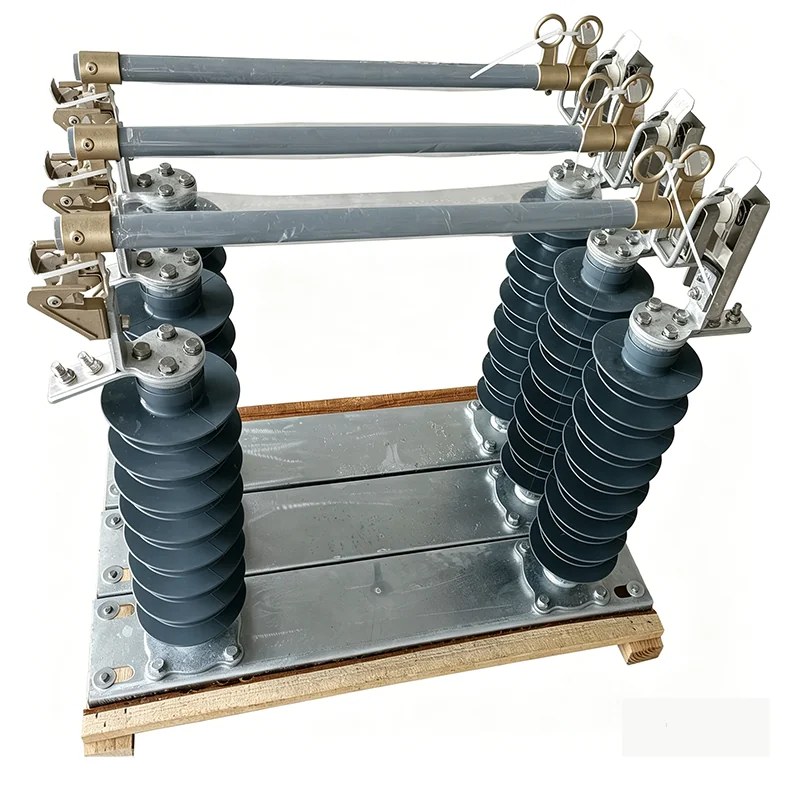

HRW5-35/200A 35kV Drop-out Fuse

HRW5-35/200A drop-out fuse, 35kV rated, 200A, 800mm creepage, 170kV lightning impulse withstand, for short-circuit and overload protection of 33kV/35kV lines.

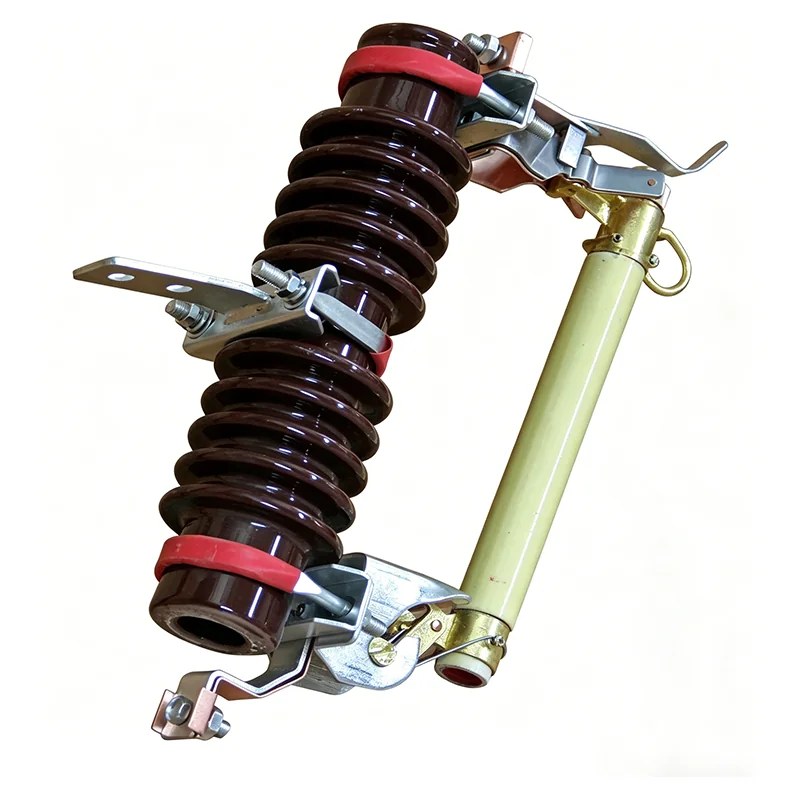

RW11-12KV/200A 12kV Drop-out Fuse

RW11-12KV/200A drop-out fuse, 12kV rated, 200A, 8000A breaking current, 260mm creepage, for short-circuit and overload protection of 10kV/11kV lines.
