Product Overview

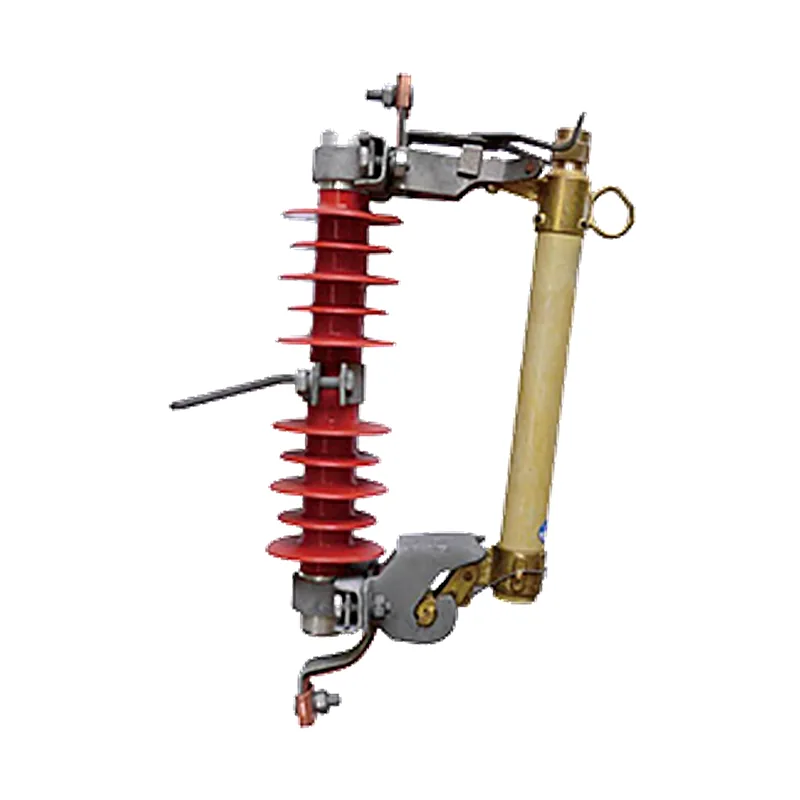

The HRW11-12/200A silicone rubber drop-out fuse has a rated voltage of 12 kV and a rated current of 200 A, and is used for short-circuit and overload protection of distribution lines of 12 kV and below. Using silicone rubber insulators and weighing only 4.4 kg, the HRW11-12/200A is intended for distribution lines in 12 kV polluted areas.
Working Principle
The drop-out fuse is a short-circuit and overload protection device for distribution lines. Under normal operation the fuse tube is fixed on the static contact by trunnions; when an overload or short circuit occurs in the line, the fuse melts and the fuse tube falls under gravity, forming a clearly visible break that isolates the faulty line for inspection and fuse replacement.
Main Technical Parameters
| Model | Rated voltage (kV) | Rated current (A) | Breaking current (A) | Lightning impulse withstand voltage (kV) | 1-min power-frequency withstand voltage (kV) | Creepage distance (mm) | Weight (kg) | Outline dimensions (cm) |
|---|---|---|---|---|---|---|---|---|
| HRW11-12/100A | 12 | 100 | 6300 | 110 | 42 | 350 | 4.4 | 48x28x11.5 |
| HRW11-12/200A | 12 | 200 | 8000 | 110 | 42 | 350 | 4.4 | 48x28x11.5 |
The HRW11-12/200A drop-out fuse has a creepage distance of 350 mm, a rated breaking current of 8000 A and outline dimensions of 48×28×11.5 cm, and is highly hydrophobic and cleaning-free.
Structure
- Arc extinguishing chamber;
- Parallel-groove connector: cast brass; even with inconsistent dimensions, connection is simple thanks to the 2 guide sleeves, and other connector types are also compatible;
- Link hook: for use with the switching operating rod;
- Fuse tube: fibreglass with a special UV-resistant coating; versions with an isolating-switch blade are available;
- Metal ferrule: cast red copper, pinned to the top and bottom of the fuse tube as a permanent connection;
- Collar joint: ensures reliable tripping;
- High-strength insulator;
- Trunnion sleeve: holds the fuse tube on the hinge when closed;
- Trunnion: high-strength cast bronze, silver-plated; the trunnion surface presses on the hinge surface, keeping the fuse tube aligned when closed.
Reference Parameters of Other Models in the Series
| Model | Rated voltage (kV) | Rated current (A) | Breaking current (A) | Lightning impulse withstand voltage (kV) | 1-min power-frequency withstand voltage (kV) | Creepage distance (mm) | Weight (kg) | Outline dimensions (cm) |
|---|---|---|---|---|---|---|---|---|
| HRW3-10/100A | 10 | 100 | 6300 | 110 | 42 | 260 | 6.5 | 48x32x27 |
| HRW3-10/200A | 10 | 200 | 8000 | 110 | 42 | 260 | 6.5 | 48x32x27 |
| HRW5-35/100A | 35 | 100 | 6300 | 170 | 105 | 800 | 16 | 90x72x17 |
| HRW5-35/200A | 35 | 200 | 8000 | 170 | 105 | 800 | 16 | 90x72x17 |
| HRW7-12/100A | 12 | 100 | 6300 | 110 | 42 | 240 | 5.5 | 48x28x11.5 |
| HRW7-12/200A | 12 | 200 | 8000 | 110 | 42 | 240 | 5.5 | 48x28x11.5 |
| HRW10-12F/100A | 12 | 100 | 6300 | 110 | 42 | 260 | 4.9 | 53.5x14x34 |
| HRW10-12F/200A | 12 | 200 | 8000 | 110 | 42 | 260 | 4.9 | 53.5x14x34 |
Note: the above are catalogue parameters of other models in the series, for selection reference.
