HY5WX-51/134 40.5 kV Metal-oxide Surge Arrester
General description of surge arresters

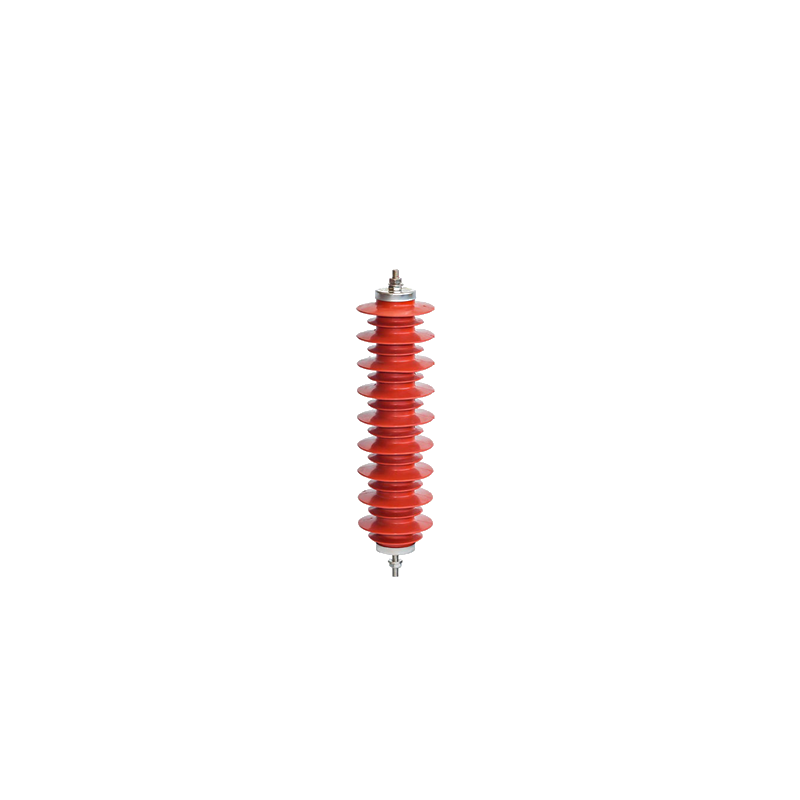

HY5WX-51/134 metal-oxide surge arrester (MOA) uses zinc-oxide varistors (MOV) as the core element; its non-linear V-I characteristics greatly improve the protective performance under steep-front, lightning and switching waves compared with conventional silicon-carbide arresters. The zinc-oxide varistor has good steep-front response, no delay to steep-front voltage, low switching residual voltage and no discharge dispersion, overcoming the shortcomings of silicon-carbide arresters such as high steep-front discharge voltage caused by discharge delay and large dispersion of switching-wave discharge voltage, thus greatly increasing the protection margins under steep-front and switching waves. In terms of insulation coordination, the protection margins under steep-front, lightning and switching waves can be made nearly identical, providing reliable protection for power equipment. Metal-oxide surge arresters can also absorb lightning overvoltage, switching overvoltage and power-frequency temporary overvoltage.
The polymer-housed metal-oxide surge arrester is formed by one-piece silicone-rubber moulding, with good sealing and explosion-proof performance, pollution resistance without cleaning, reduced wet flashover in foggy weather, resistance to electrical erosion and ageing, small size, light weight and impact resistance; it is easy to install and maintain, and is the replacement for porcelain-housed arresters. This model is of line-type construction and is used for overvoltage protection of overhead transmission lines.
Product series of metal-oxide surge arresters
Complete type designation
Product Overview
With a rated voltage of 51 kV and a lightning impulse residual voltage of 134 kV, this 35 kV line-type arrester is used for overvoltage protection of overhead transmission lines. With high mechanical strength and good anti-pollution performance, it limits lightning overvoltages and protects line insulation equipment for safe operation. The HY5WX-51/134 metal-oxide surge arrester is the 35 kV line-type zinc-oxide surge arrester; its parameters are given in the table below.
Technical parameters of this series (10 kV-220 kV)
('| Voltage class | Place of use | Nominal system voltage(kV)r.m.s. | National standard type of arrester | Rated voltage of arrester(kV)r.m.s. | Gapless arrester | Arrester with gap | Residual voltage(kV)Peak (not more than)2000 | 4/10High-current withstand capability(kA) | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Continuous operating voltage of arrester(kV)r.m.s. | DC 1 mA reference voltage(kV)not less than | 0.75Max. leakage at times the DC reference voltage(μA) | Power-frequency discharge voltage(kV)r.m.s. not less than | 1.2-50Impulse discharge voltage(kV)Peak not more than | Max. conducting current（μA） | 8/20Under lightning impulse current | 30/36Under switching impulse current | 1/4steep-front impulse current | usRectangular-wave current carrying capacity(A) | ||||||
| 10kV | Neutral-point type | 10.5* | HY1.5W-8/19 | 8 | 6.4 | 11.4 | 50 | - | 、 | 、 | 19.0 | 15.9 | - | 400 | 65 |
| 13.8* | HY1.5W-10.5/23 | 10.5 | 8.4 | 14.9 | 50 | - | . | . | 23.0 | 19.2 | - | 400 | 65 | ||
| 15.75* | HY1.5W-12/26 | 12 | 9.6 | 17.0 | 50 | - | - | - | 26.0 | 21.6 | - | 400 | 65 | ||
| 18.0* | HY1.5W-13.7/29.2 | 13.7 | 11.0 | 19.5 | 50 | - | - | - | 29.2 | 24.3 | - | 400 | 65 | ||
| 20.0* | HY1.5W-15.2/31.7 | 15.2 | 12.2 | 21.6 | 50 | - | - | - | 31.7 | 26.4 | - | 400 | 65 | ||
| 35kV66kV | Station type | 35 | HY5WZ-51/134 | 51 | 40.8 | 73 | 50 | - | - | - | 134 | 114 | 154 | 400 | 65 |
| 35 | HY5WZ-42/134 | 42 | 23.4 | 73 | 50 | - | - | - | 134 | 114 | 154 | 400 | 65 | ||
| 35 | HY5CZ-42/134 | 42 | - | - | - | 80.0 | 124 | 20 | 124 | 100 | 143 | 400 | 65 | ||
| Capacitor type | 35 | HY5WR-51/134 | 51 | 40.8 | 73 | 50 | - | - | - | 134 | 105 | - | 400 | 65 | |
| 35 | HY5CR-42/124 | 42 | - | - | - | 80.0 | 124 | 20 | 134 | 100 | - | 400 | 65 | ||
| 35 | HY5WR-42/134 | 42 | 23.4 | 73 | 50 | - | - | - | 124 | 105 | - | 400 | 65 | ||
| Line typeNeutral-point type | 35 | HY5WX-51/134 | 51 | 40.8 | 73 | 50 | - | - | - | 134 | 114 | 154 | 400 | 65 | |
| 35 | HY5WX-54/150 | 54 | 43.2 | 77 | 50 | 80.0 | 120 | 20 | 150 | 128 | 169 | 400 | 65 | ||
| 35 | HY5CX-42/120 | 42 | - | - | - | 80.0 | 150 | 20 | 120 | 100 | 138 | 400 | 65 | ||
| 35 | HY5CX-42/150 | 42 | - | - | 50 | - | - | - | 150 | 128 | 169 | 400 | 65 | ||
| 35 | HY1.5W-30/80 | 30 | 24 | 44 | 50 | - | - | - | 80 | 67.5 | - | 400 | 65 | ||
| Station typeLine type | 66 | HY5WZ-84/221 | 84 | 67.2 | 121 | 50 | - | - | - | 221 | 188 | 254 | 600 | 65 | |
| 66 | HY5WZ-90/235 | 90 | 72.5 | 130 | 50 | - | - | - | 235 | 201 | 270 | 600 | 65 | ||
| 66 | HY10WZ-84/221 | 84 | 67.2 | 121 | 50 | - | - | - | 221 | 188 | 248 | 500 | 100 | ||
| 66 | HY10WZ-90/235 | 90 | 72.5 | 130 | 50 | - | - | - | 235 | 201 | 264 | 500 | 100 | ||
| 66 | HY5WX-96/250 | 96 | 75 | 140 | 50 | - | - | - | 250 | 213 | 288 | 500 | 65 | ||
| 66 | HY5WX-96/275 | 96 | 75 | 154 | 50 | - | - | 、 | 275 | 234 | 316 | 500 | 65 | ||
| 110kV220kV27.5kV | Station type | 110 | HY5WZ-100/260 | 100 | 78 | 145 | 50 | - | - | - | 260 | 221 | 299 | 500 | 65 |
| 110 | HY5WZ-102/266 | 102 | 79.6 | 148 | 50 | - | - | - | 266 | 226 | 305 | 500 | 65 | ||
| 110 | HY5WZ-108/281 | 108 | 84 | 157 | 50 | - | - | - | 281 | 239 | 323 | 500 | 65 | ||
| 110 | HY10WZ-100/260 | 100 | 78 | 145 | 50 | - | - | - | 260 | 221 | 291 | 500 | 100 | ||
| 110 | HY10WZ-102/266 | 102 | 79.6 | 148 | 50 | - | - | - | 266 | 226 | 297 | 500 | 100 | ||
| 110 | HY10WZ-108/281 | 108 | 84 | 157 | 50 | - | - | - | 281 | 239 | 315 | 500 | 100 | ||
| Line typeNeutral-point typeStation typeLine typeNeutral-point type | 110 | HY5WX-108/281 | 108 | 84 | 157 | 50 | - | - | - | 281 | 239 | 323 | 500 | 65 | |
| 110 | HY5WX-108/309 | 108 | 84 | 173 | 50 | - | - | - | 309 | 263 | 348 | 500 | 65 | ||
| 110 | HY10WX-108/281 | 108 | 84 | 157 | 50 | - | - | - | 281 | 239 | 315 | 500 | 100 | ||
| 110 | HY10WX-108/309 | 108 | 84 | 173 | 50 | - | - | - | 309 | 263 | 348 | 500 | 100 | ||
| 110 | HY5CX-90/260 | 90 | - | 130 | 50 | 170* | 525* | - | 260 | - | 292 | 400 | 65 | ||
| 110 | HY10CX-90/260 | 90 | - | 130 | 50 | 170* | 525* | - | 260 | - | 292 | 600 | 100 | ||
| 110 | HY10CX-96/280 | 96 | - | 140 | 50 | 170* | 525* | - | 280 | - | 314 | 600 | 100 | ||
| 110 | HY10CX-102/296 | 102 | - | 148 | 50 | 170* | 525* | - | 296 | - | 332 | 500 | 100 | ||
| 110 | HY1.5W-60/144 | 60 | 48 | 85 | 50 | - | - | - | 144 | 135 | - | 400 | 65 | ||
| 110 | HY1.5W-72/186 | 72 | 58 | 103 | 50 | - | - | - | 186 | 174 | - | 400 | 65 | ||
| 220 | HY10WZ-192/500 | 192 | 150 | 280 | 50 | - | - | - | 500 | 426 | 560 | 800 | 100 | ||
| 220 | HY10WZ-200/520 | 200 | 156 | 290 | 50 | - | - | - | 520 | 442 | 582 | 800 | 100 | ||
| 220 | HY10WZ-204/532 | 204 | 159 | 296 | 50 | - | - | - | 532 | 452 | 594 | 800 | 100 | ||
| 220 | HY10WZ-216/562 | 216 | 168.5 | 314 | 50 | - | - | - | 562 | 478 | 630 | 800 | 100 | ||
| 220 | HY10WX-216/562 | 216 | 168 | 314 | 50 | - | - | - | 562 | 478 | 630 | 600 | 100 | ||
| 220 | HY10WX-216/618 | 216 | 168 | 346 | 50 | - | - | - | 618 | 526 | 693 | 600 | 100 | ||
| 220 | HY10CX-185/520 | 180 | - | 260 | 50 | 340* | 900* | - | 520 | - | 584 | 600 | 100 | ||
| 220 | HY10CX-192/560 | 192 | - | 280 | 50 | 340* | 900* | - | 560 | - | 628 | 600 | 100 | ||
| 220 | HY10CX-204/592 | 204 | - | 296 | 50 | 340* | 900* | - | 592 | - | 664 | 600 | 100 | ||
| 220 | HY1.5W-144/320 | 144 | 116 | 205 | 50 | - | - | - | 320 | 299 | - | 600 | 65 | ||
| Railway type | 27.5 | HY5WT-42/120 | 42 | 34 | 65 | 50 | - | - | - | 120 | 98 | 138 | 400 | 65 | |
| 55kV | - | 55 | HY5WT-84/240 | 84 | 68 | 130 | 50 | - | - | - | 240 | 276 | 276 | 400 | 65 |
Outline dimensions
Service Conditions
- Ambient temperature: not higher than +40 ℃ and not lower than -40 ℃;
- Altitude not higher than 2000 m;
- Rated frequency: 50 Hz or 60 Hz;
- The voltage continuously applied to the arrester shall not exceed its continuous operating voltage;
- Max. wind speed: 35 m/s;
- Seismic intensity: not greater than degree 7.
