Product Overview
The HXGN□-12 air-insulated compact switchgear is switchgear developed by our company based on technical interpretation of power users' demands for reliability, safety and compactness of electrical equipment. It features air insulation, compactness, complete intellectual property rights and complete type tests. It is suitable for 10 kV/7.2 kV power distribution systems of public buildings, commercial residential buildings and industrial & manufacturing industries, and also for complete machinery driven by HV motors with high compactness requirements.
Product Features
Compact / flexible
Air-insulation mode meets the clearance and partial-discharge standards of the power industry technical specifications.
Compact cabinet dimensions, matching standard cabinet dimensions:
480*1000*1800 mm (W×D×H); the complete distribution system is especially compact, saving space for expensive urban building land.
Flexible busbar forms and extension methods facilitate splicing with other different cabinet types.
Integrated / solid-sealed
Integrated circuit-breaker combination design: the combination apparatus integrates the disconnector, circuit breaker, earthing switch and live sensor in one body, with modular design, simple and reliable interlocking and easy maintenance.
Visualized / high efficiency
Visualized disconnector break design, fast delivery, and overall modular design make assembly at electrical complete-equipment factories convenient and quick. The integrated structure realizes all interlock requirements within the single mechanism, reducing the risk of interlock failure caused by factory assembly process problems.
Stable / durable
Spring / permanent-magnet mechanisms optional, long mechanical life, solid-sealed vacuum interrupter packaging with dust protection and high insulation performance. The modular scheme combination enables the HXGN□-12 air-insulated compact switchgear to cover incoming, outgoing, ring-main and F-C circuit applications.
Service Conditions
- 1、Altitude not exceeding 2000 m;
- 2、Ambient temperature+40℃;
- 3、Relative humidity: daily average not exceeding 95%%，monthly average not exceeding 95%%;
- 4、The surrounding air shall not be obviously polluted by corrosive or combustible gases, water vapor, etc.;
- 5、No frequent violent vibration;
For different service conditions or other requirements, consult the manufacturer。
Main Technical Parameters
| Rated voltage: | 12kV |
| 1MINPower-frequency withstand voltage: | 42kV |
| Lightning impulse withstand voltage: | 75/85kV |
| Rated current: | 630 — 1250A(Feeder) |
| Rated frequency: | 50/60Hz |
| Rated short-circuit breaking current: | 25kA/31.5kA |
| Rated short-time withstand current: | 25kA/31.5kA |
| Rated peak withstand current: | 50kA/63kA |
| Number of rated short-circuit breaking operations: | 30 operations |
| Mechanical endurance: | 10000 operations (circuit breaker) |
| Auxiliary circuit power-frequency withstand voltage: | 2000V |
| 630—1250A(Incoming) | |
| 3000 operations（Disconnector/Earthing switch）/100000 operations (circuit breaker) | |

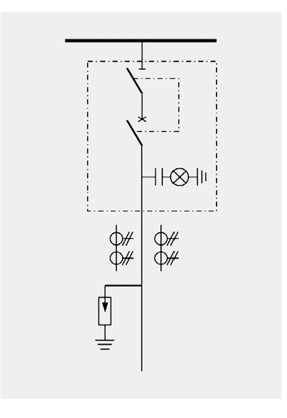

Outgoing & earthing-switch circuit-breaker cabinet:HXGN-12/04
Standard configurations
- HXGN-12 integrated HV vacuum circuit breaker (1250A/31.5kA or 630A/25kA)
- Disconnector
- Operating mechanism (with five-prevention interlock)
- Cable fixing clamp
- Observation window
- Current transformer (3 pcs)
- Microprocessor protection device
Optional configurations & features
- Lighting device
- Temperature & humidity control device
- Live-line indicator
- Surge arrester
- Auxiliary elements
- Outline dimensions (W×D×H): 480mm × 1000mm × 1800mm

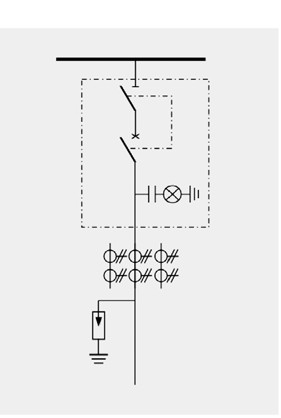

Outgoing circuit-breaker cabinet: HXGN-12/05
Standard configurations
- HXGN-12 integrated HV vacuum circuit breaker (1250A/31.5kA or 630A/25kA)
- Disconnector
- Operating mechanism (with five-prevention interlock)
- Cable fixing clamp
- Observation window
- Current transformer (2 pcs)
- Microprocessor protection device
Optional configurations & features
- Lighting device
- Temperature & humidity control device
- Live-line indicator
- Surge arrester
- Auxiliary elements
- Outline dimensions (W×D×H): 480mm × 1000mm × 1800mm
Outgoing circuit-breaker cabinet: HXGN-12/06
Standard configurations
- HXGN-12 integrated HV vacuum circuit breaker (1250A/31.5kA or 630A/25kA)
- Disconnector
- Operating mechanism (with five-prevention interlock)
- Cable fixing clamp
- Observation window
- Current transformer (2 pcs)
- Microprocessor protection device
Optional configurations & features
- Lighting device
- Temperature & humidity control device
- Live-line indicator
- Surge arrester
- Auxiliary elements. Outline dimensions (W×D×H): 480mm × 1000mm × 1800mm
Typical Primary Schemes

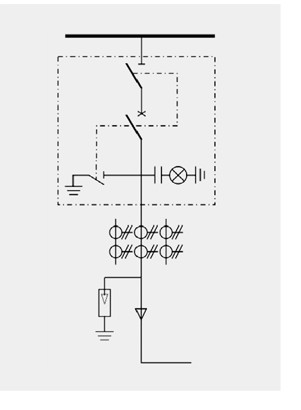

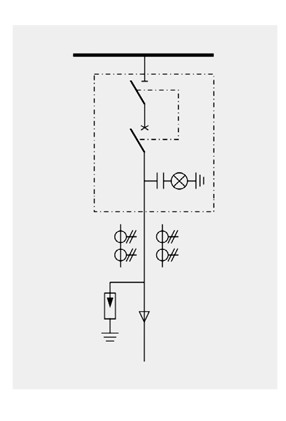

The figure below shows a typical primary scheme of the HXGN□-12air-insulated compact switchgear typical primary scheme.

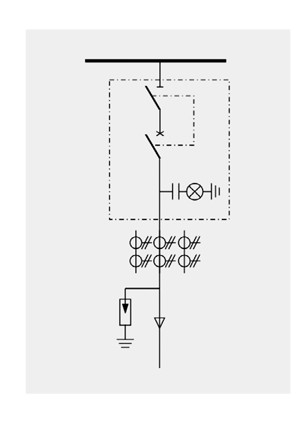

Incoming circuit-breaker cabinet: HXGN-12/01
| Standard configurations | Optional configurations & features |
|---|---|
|
|

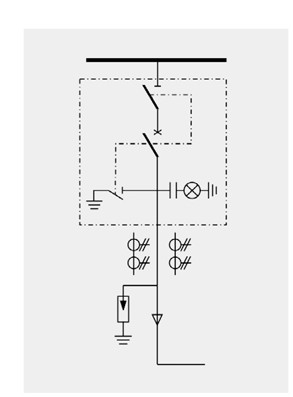

Outgoing circuit-breaker cabinet: HXGN-12/02
| Standard configurations | Optional configurations & features |
|---|---|
|
|

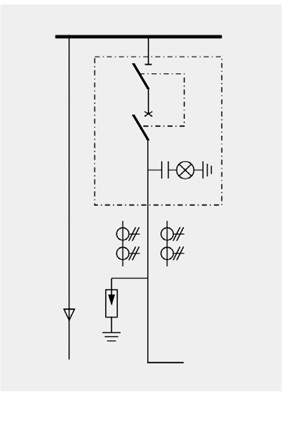

Outgoing & earthing-switch circuit-breaker cabinet: HXGN-12/03
| Standard configurations | Optional configurations & features |
|---|---|
|
|

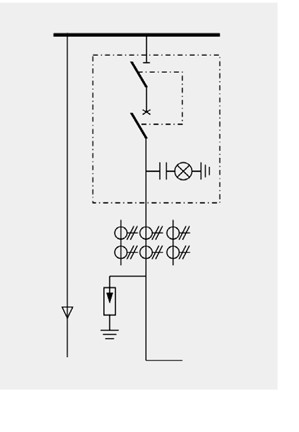

Outgoing & earthing-switch circuit-breaker cabinet: HXGN-12/07
Standard configurations
- HXGN-12 integrated HV vacuum circuit breaker (1250A/31.5kA or 630A/25kA)
- Disconnector
- Operating mechanism(with five-prevention interlock)
- Cable fixing clamp
- Observation window
- Current transformer (2 pcs)
- Microprocessor protection device
Optional configurations & features
- Lighting device
- Temperature & humidity control device
- Live-line indicator
- Surge arrester
- Auxiliary elements
- Outline dimensions:(W×D×H)(480+400)520mm×1000mm×1800mm

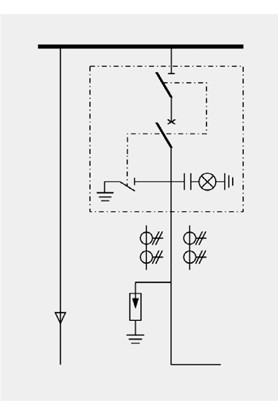

Outgoing & earthing-switch circuit-breaker cabinet: HXGN-12/08
Standard configurations
- HXGN-12 integrated HV vacuum circuit breaker (1250A/31.5kA or 630A/25kA)
- Disconnector
- Operating mechanism(with five-prevention interlock)
- Cable fixing clamp
- Observation window
- Current transformer (3 pcs)
- Microprocessor protection device
Optional configurations & features
- Lighting device
- Temperature & humidity control device
- Live-line indicator
- Surge arrester
- Auxiliary elements
- Outline dimensions:(W×D×H)(480+400)520mm×1000mm×1800mm

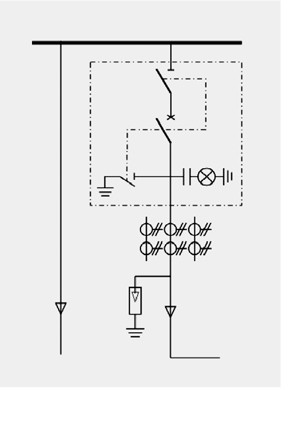

Outgoing circuit-breaker cabinet: HXGN-12/09
Standard configurations
- HXGN-12 integrated HV vacuum circuit breaker (1250A/31.5kA or 630A/25kA)
- Disconnector
- Operating mechanism(with five-prevention interlock)
- Cable fixing clamp
- Observation window
- Current transformer (2 pcs)
- Microprocessor protection device
Optional configurations & features
- Lighting device
- Temperature & humidity control device
- Live-line indicator
- Surge arrester
- Auxiliary elements
- Outline dimensions:(W×D×H)480mm x1000mm×1800mm

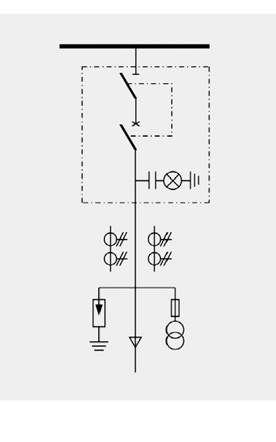

Outgoing circuit-breaker cabinet: HXGN-12/10
Standard configurations
- ■ HXGN integrated HV vacuum circuit breaker(1250A/31.5kA or 630A/25kA)
- ■ Disconnector
- ■ Operating mechanism (with five-prevention interlock)
- ■ Cable fixing clamp
- ■ Observation window
- ■ Current transformer (3 pcs)
- ■ Microprocessor protection device
Optional configurations & features
- □ Lighting device
- □ Temperature & humidity control device
- □ Live-line indicator
- □ Surge arrester
- □ Auxiliary elements
- □ Outline dimensions:(W×D×H) 480mm ×1000mm ×1800mm

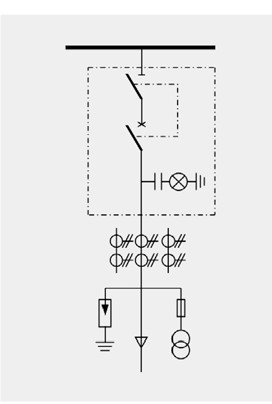

Outgoing & earthing-switch circuit-breaker cabinet:HXGN-12/11
Standard configurations
- ■ HXGN-12 integrated HV vacuum circuit breaker (1250A/31.5kA or 630A/25kA)
- ■ Disconnector
- ■ Operating mechanism (with five-prevention interlock)
- ■ Cable fixing clamp
- ■ Observation window
- ■ Current transformer (2 pcs)
- ■ Voltage transformer (2 or 1 pcs)
- ■ Microprocessor protection device
Optional configurations & features
- □ Lighting device
- □ Temperature & humidity control device
- □ Live-line indicator
- □ Surge arrester
- □ Auxiliary elements
- □ Outline dimensions:(W×D×H) 720mm ×1000mm ×1800mm

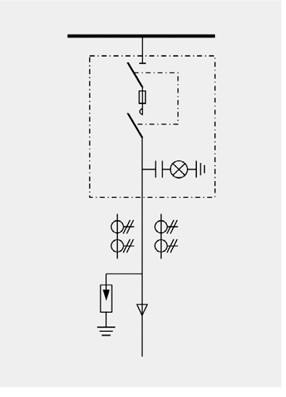

Outgoing & earthing-switch circuit-breaker cabinet:HXGN-12/12
Standard configurations
- ■ HXGN-12 integrated HV vacuum circuit breaker (1250A/31.5kA or 630A/25kA)
- ■ Disconnector
- ■ Operating mechanism (with five-prevention interlock)
- ■ Cable fixing clamp
- ■ Observation window
- ■ Current transformer (2 pcs)
- ■ Voltage transformer (2 or 1 pcs)
- ■ Microprocessor protection device
Optional configurations & features
- □ Lighting device
- □ Temperature & humidity control device
- □ Live-line indicator
- □ Surge arrester
- □ Auxiliary elements
- □ Outline dimensions:(W×D×H) 720mm ×1000mm ×1800mm

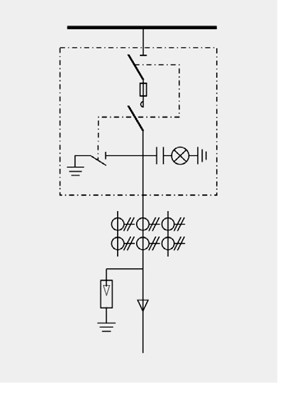

F-C outgoing circuit-breaker cabinet: HXGN-12/13
| Standard configurations | Optional configurations & features |
|---|---|
| ■ HXGN-12 integrated HV vacuum circuit breaker (1250A/31.5kA or 630A/25kA) | □Lighting device |
| ■Disconnector | □Temperature & humidity control device |
| ■Operating mechanism (with five-prevention interlock) | □Live-line indicator |
| ■Cable fixing clamp | □Surge arrester |
| ■Observation window | □Auxiliary elements |
| ■Current transformer (2 pcs) | □Outline dimensions (W×D×H): 480mm × 1000mm × 1800mm |
| ■Microprocessor protection device | - |

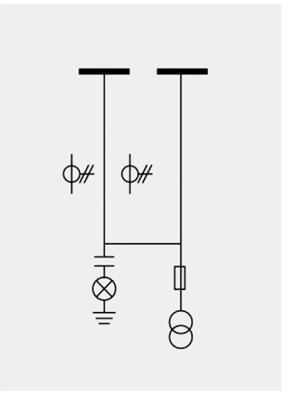

F-C-way outgoing circuit-breaker cabinet:HXGN-12/14
| Standard configurations | Optional configurations & features |
|---|---|
| ■ HXGN-12 integrated HV vacuum circuit breaker (1250A/31.5kA or 630A/25kA) | □Lighting device |
| ■Disconnector | □Temperature & humidity control device |
| ■Operating mechanism (with five-prevention interlock) | □Live-line indicator |
| ■Cable fixing clamp | □Surge arrester |
| ■Observation window | □Auxiliary elements |
| ■Current transformer (2 pcs) | □Outline dimensions (W×D×H): 480mm × 1000mm × 1800mm |
| ■Microprocessor protection device | - |

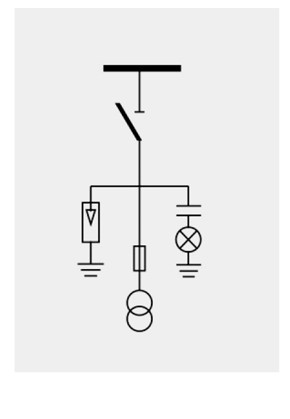

Outgoing & earthing-switch circuit-breaker cabinet:HXGN-12/15
| Standard configurations | Optional configurations & features |
|---|---|
| ■ HXGN-12 integrated HV vacuum circuit breaker (1250A/31.5kA or 630A/25kA) | □Lighting device |
| ■Disconnector | □Temperature & humidity control device |
| ■Operating mechanism (with five-prevention interlock) | □Live-line indicator |
| ■Cable fixing clamp | □Surge arrester |
| ■Observation window | □Auxiliary elements |
| ■Current transformer (2 pcs) | □Outline dimensions:（W×D×H）720mm ×1000mm ×1800mm |
| ■Voltage transformer (2 or 1 pcs) | - |
| ■Microprocessor protection device | - |
Outgoing & earthing-switch circuit-breaker cabinet:HXGN-12/16
Standard configurations
- ■ HXGN-12 integrated HV vacuum circuit breaker (1250A/31.5kA or 630A/25kA)
- ■ Disconnector
- ■ Operating mechanism (with five-prevention interlock)
- ■ Cable fixing clamp
- ■ Observation window
- ■ Current transformer (2 pcs)
- ■ Voltage transformer (2 pcs or 1 pc)
- ■ Microprocessor protection device
Optional configurations & features
- □ Lighting device
- □ Temperature & humidity control device
- □ Live-line indicator
- □ Surge arrester
- □ Auxiliary elements
- □ Outline dimensions: (W × D × H) 720mm ×1000mm ×1800mm

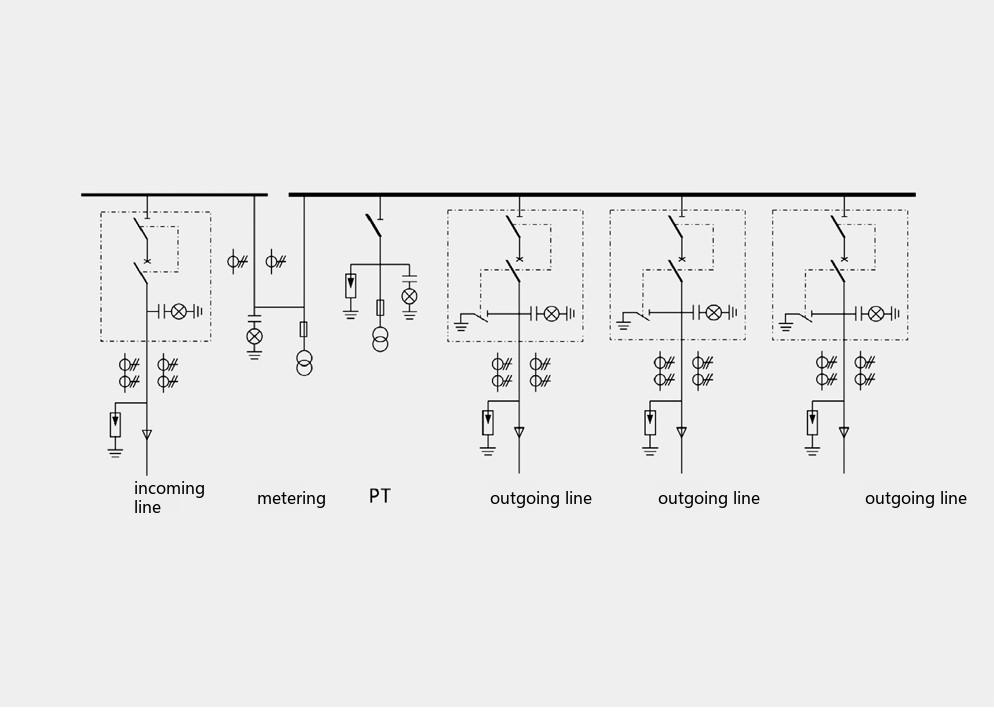

Typical scheme examples
