Product Overview

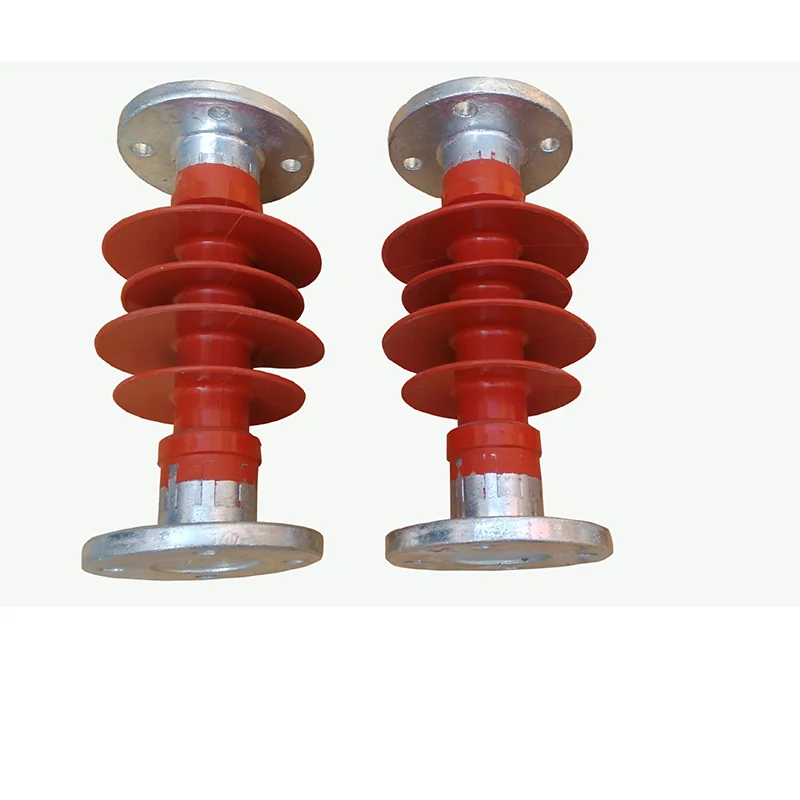

The FZSW-10/5 composite post insulator has a rated voltage of 10 kV and a rated mechanical load of 5 kN, and is used as a busbar support or jumper support in substation installations.
The product is intended for substation installations. It offers excellent hydrophobicity, ageing resistance, tracking resistance and erosion resistance, together with very high tensile and bending strength. It features high mechanical strength, good impact, vibration and anti-brittle-fracture performance, and is light in weight and easy to install. Its top and bottom mounting dimensions are identical to those of the corresponding porcelain pin insulators, so the two can be used interchangeably. The product meets bending loads of 4-10 kN.As the busbar support of 10 kV distribution switchgear, the FZSW-10/5 composite post insulator is light and cleaning-free, suited to long-term operation in polluted and humid areas.
Type Designation
In the type designation, F stands for composite insulation (silicone rubber housing + epoxy-glass pultruded core rod), Z for post-type construction, S for solid-core rod and W for anti-pollution type. The figure 10 before the slash indicates the rated voltage of 10 kV and the figure 5 after the slash the rated mechanical load of 5 kN. This model has a minimum nominal creepage distance of 290 mm and a structural height of 215 mm; it is light in overall weight, resists bending up to 5 kN and features good anti-brittle-fracture performance, suited to busbar supports, jumper supports and switchgear lead supports in 10 kV substations. Its upper and lower fitting dimensions are identical to porcelain posts of the same specification and can be directly interchanged. The FZSW-10/5 composite post insulator adopts a solid-core structure with an integrally injection-moulded silicone rubber housing and can directly replace porcelain post insulators of the same specification.
Main Technical Parameters
Performance complies with GB/T20142-2006 and IEC 61952.
| Model | Rated voltage (kV) | Rated mechanical load (kN) | Rated torsional load (kN·m) | Structural height (mm) | Min. arcing distance (mm) | Min. nominal creepage distance (mm) | Shed diameter (mm) | Lightning impulse withstand voltage, peak (kV) | 1-min power-frequency wet withstand voltage, r.m.s. (kV) | Upper fitting mounting dimensions | Lower fitting mounting dimensions |
|---|---|---|---|---|---|---|---|---|---|---|---|
| FZSW-10/5 | 10 | 5 | 0.6 | 215 | 125 | 290 | 100/90 | 75 | 42 | 4-M12-Φ76 | 4-M12-Φ76 |
| FZSW-15/5 | 15 | 5 | 0.6 | 245 | 170 | 600 | 138/118 | 105 | 45 | 4-M12-Φ76 | 4-M12-Φ76 |
| FZSW-20/8 | 20 | 8 | 1.2 | 400 | 300 | 920 | 122/92 | 125 | 50 | 4-Φ14-Φ140 | 4-Φ14-Φ140 |
| FZS-20/8 | 20 | 8 | 1.2 | 420 | 320 | 700 | 138 | 125 | 50 | 4-Φ14-Φ140 | 4-Φ14-Φ140 |
| FZSW-35/6 | 35 | 6 | 2 | 460 | 360 | 900 | 148/118 | 185 | 95 | 4-Φ14-Φ140 | 4-Φ14-Φ140 |
| FZSW-66/8 | 66 | 8 | 1.5 | 770 | 650 | 1930 | 160/130 | 325 | 140 | 4-Φ14-Φ140 | 4-Φ14-Φ140 |
| FZSW-66/12 | 66 | 12 | 2 | 760 | 630 | 1940 | 215/185 | 325 | 140 | 4-Φ14-Φ140 | 4-Φ14-Φ140 |
| FZSW-110/6 | 110 | 6 | 1.5 | 1150 | 1050 | 2950 | 160/130 | 325 | 200 | 4-Φ14-Φ140 | 4-Φ14-Φ140 |
| FZSW-110/10 | 110 | 10 | 4 | 1220 | 1060 | 3260 | 215/185 | 450 | 200 | 4-Φ14-Φ140 | 4-Φ18-Φ180 |
| FZSW-220/10 | 220 | 10 | 4 | 2250 | 2050 | 6520 | 215/185 | 950 | 395 | 4-Φ14-Φ140 | 4-Φ18-Φ225 |
Notes: 1. The minimum nominal creepage distance varies slightly with product height. 2. The product height and upper/lower fitting dimensions can be selected from the table or supplied on request; 220 kV products can be single-unit or two-unit assemblies. 3. At present, 110 kV-220 kV composite rod post insulators are only suitable for busbar or jumper supports; use as isolator supports is subject to technical consultation.
