Product Overview
The FN5-12RL/630A indoor high-voltage load switch, with rated voltage 12 kV and rated current 630 A, is suitable for AC 50 Hz, 12 kV distribution networks to break load current and make short-circuit current. This load switch is widely applied in industrial and mining enterprises as well as urban and rural distribution networks.
The FN5-12 indoor high-voltage load switch and switch-fuse combination apparatus (hereinafter referred to as the switch) is suitable for AC 50 Hz, 12 kV distribution networks, for breaking load current and making short-circuit current. The switch with fuse can interrupt short-circuit current for protection. It can be equipped with a CS6-1 manual operating mechanism, the dedicated CS manual operating mechanism, or a CJ electric operating mechanism.
Product features: This product is the integrated version of the FN5-12R switch-fuse combination apparatus (the 'L' in the model indicates integrated construction with interlocking). The load switch and fuse are arranged as an integrated unit with reliable mechanical interlocking, meeting the five-prevention requirements, and is suitable for circuits in 12 kV indoor distribution networks requiring combined protection and operating safety. The FN5-12RL/630A load switch has a rated current of 630 A, a 2 s rated short-time withstand current of 20 kA and a rated peak withstand current of 50 kA. The FN5-12RL/630A is the integrated version of the FN5-12R switch-fuse combination apparatus, with the fuse mounted directly on the switch frame.
Type Designation

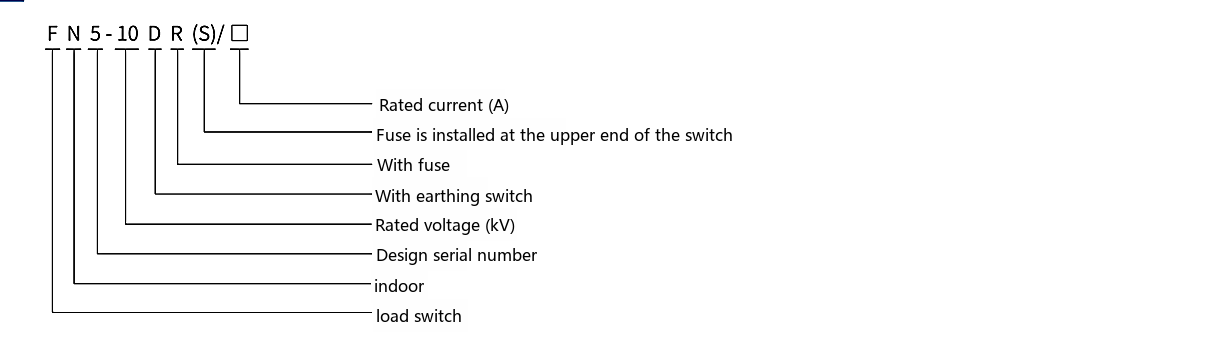

Type code format: FN5 - 12 D R (S)/□
| F | Load switch |
| N | Indoor |
| 5 | Design serial no. |
| 12 | Rated voltage 12kV |
| D | With earthing switch |
| R | With fuse |
| (S) | Fuse mounted at upper end of switch |
| □ | Rated current (A) |
Normal Service Conditions
— Altitude not exceeding 1000m;
— Ambient air temperature: upper limit +40°C, lower limit -25°C (not lower than -5°C for electric mechanism);
— Relative humidity: daily average not exceeding 95%, monthly average not exceeding 90% (at +25°C);
— The surrounding air shall not be significantly polluted by corrosive or flammable gases, water vapor, etc.;
— No frequent severe vibration.

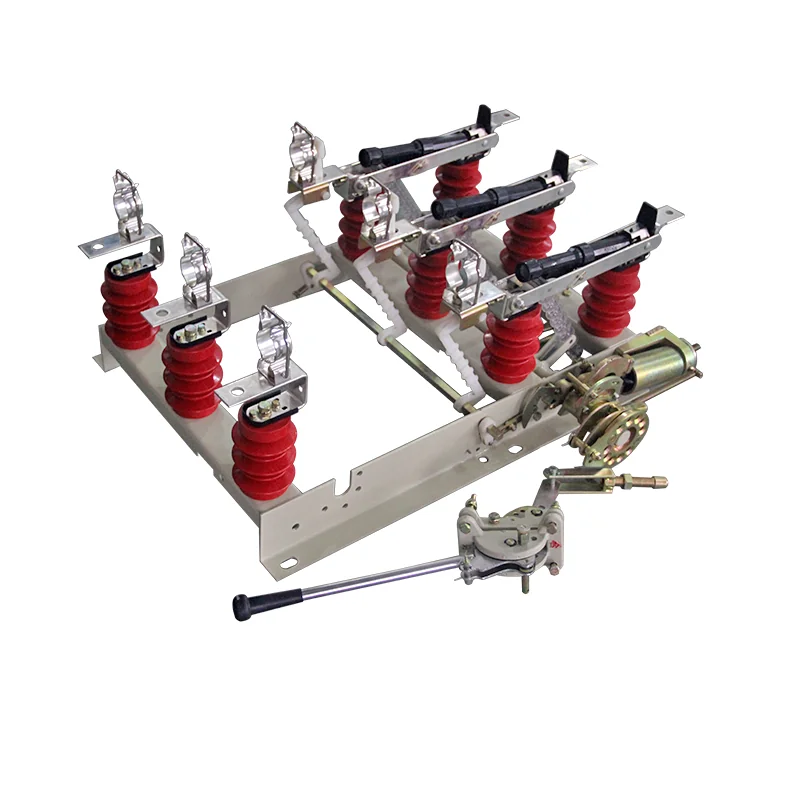

Product Images
Main Technical Parameters
Performance complies with GB/T3804 and IEC 60265.
| No. | Item | Unit | 400A data | 630A data |
|---|---|---|---|---|
| 01 | Rated voltage | kV | 12 | 12 |
| 02 | Rated frequency | Hz | 50 | 50 |
| 03 | Rated current | A | 400 | 630 |
| 04 | Rated short-time withstand current (thermal stable) | kA | 12.5(4s) | 20(2s) |
| 05 | Rated peak withstand current (dynamic stable) | kA | 31.5 | 50 |
| 06 | Rated closed-loop breaking current | A | 400 | 630 |
| 07 | Rated active load breaking current | A | 400 | 630 |
| 08 | 5% rated active load breaking current | A | 20 | 31.5 |
| 09 | Rated cable charging breaking current | A | 10 | 10 |
| 10 | Rated no-load transformer breaking capacity | kVA | 1250 | 1250 |
| 11 | Rated short-circuit making current | kA | 31.5 | 50 |
| 12 | Load current breaking times | times | 20(**** load) 35(60% load) 75(30% load) 80(5% load) | 20(**** load) 35(60% load) 75(30% load) 80(5% load) |
| 13 | 1 min power-frequency withstand voltage (r.m.s.) | kV | 42 to ground/phase-to-phase | 42 to ground/phase-to-phase |
| 14 | Power-frequency withstand voltage (across isolating gap) | kV | 48 | 48 |
| 15 | Lightning impulse withstand voltage (peak) | kV | 75 to ground/phase-to-phase, 85 across isolating gap | 75 to ground/phase-to-phase, 85 across isolating gap |
| 16 | Opening/closing operating torque (force) | N·m (N) | 90(180) | 100(200) |
Note: 400A and 630A in the table are two rated current ratings; 'R' indicates a switch-fuse combination that can interrupt short-circuit current for protection.

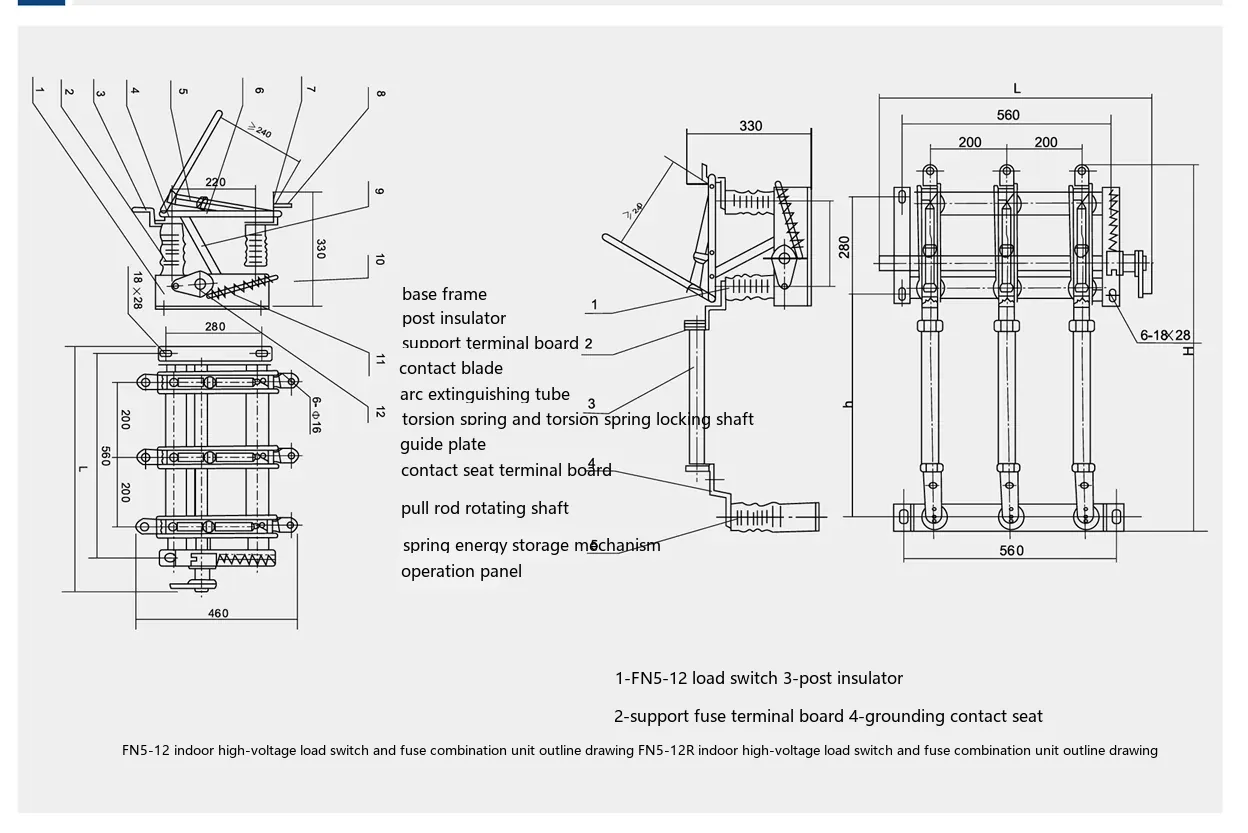

Outline and Mounting Dimensions
1-base frame, 2-post insulator, 3-support fuse terminal block, 4-contact blade, 5-arc-extinguishing tube, 6-torsion spring and lock shaft, 7-guide plate, 8-contact seat terminal block, 9-link rod, 10-rotation shaft, 11-spring energy-storage mechanism, 12-operating disk.
