Product Overview
The FN5-12R/630A indoor high-voltage load switch, with rated voltage 12 kV and rated current 630 A, is suitable for AC 50 Hz, 12 kV distribution networks to break load current and make short-circuit current. This load switch is widely applied in industrial and mining enterprises as well as urban and rural distribution networks.
The FN5-12 indoor high-voltage load switch and switch-fuse combination apparatus (hereinafter referred to as the switch) is suitable for AC 50 Hz, 12 kV distribution networks, for breaking load current and making short-circuit current. The switch with fuse can interrupt short-circuit current for protection. It can be equipped with a CS6-1 manual operating mechanism, the dedicated CS manual operating mechanism, or a CJ electric operating mechanism.
Product features: This product is a load switch-fuse combination apparatus (the 'R' in the model indicates an integrated current-limiting high-voltage fuse). Normal operating current is switched by the switch, while short-circuit faults are interrupted by the fuse, providing combined protection and especially suitable for primary distribution circuits requiring short-circuit protection and breaking. The FN5-12R/630A load switch has a rated current of 630 A, a 2 s rated short-time withstand current of 20 kA and a rated peak withstand current of 50 kA. As a switch-fuse combination apparatus, the FN5-12R/630A combines a load switch and a current-limiting fuse, and is able to break active load, closed-loop and cable charging currents.
Type Designation
Type code format: FN5 - 12 D R (S)/□
| F | Load switch |
| N | Indoor |
| 5 | Design serial no. |
| 12 | Rated voltage 12kV |
| D | With earthing switch |
| R | With fuse |
| (S) | Fuse mounted at upper end of switch |
| □ | Rated current (A) |
Normal Service Conditions
— Altitude not exceeding 1000m;
— Ambient air temperature: upper limit +40°C, lower limit -25°C (not lower than -5°C for electric mechanism);
— Relative humidity: daily average not exceeding 95%, monthly average not exceeding 90% (at +25°C);
— The surrounding air shall not be significantly polluted by corrosive or flammable gases, water vapor, etc.;
— No frequent severe vibration.

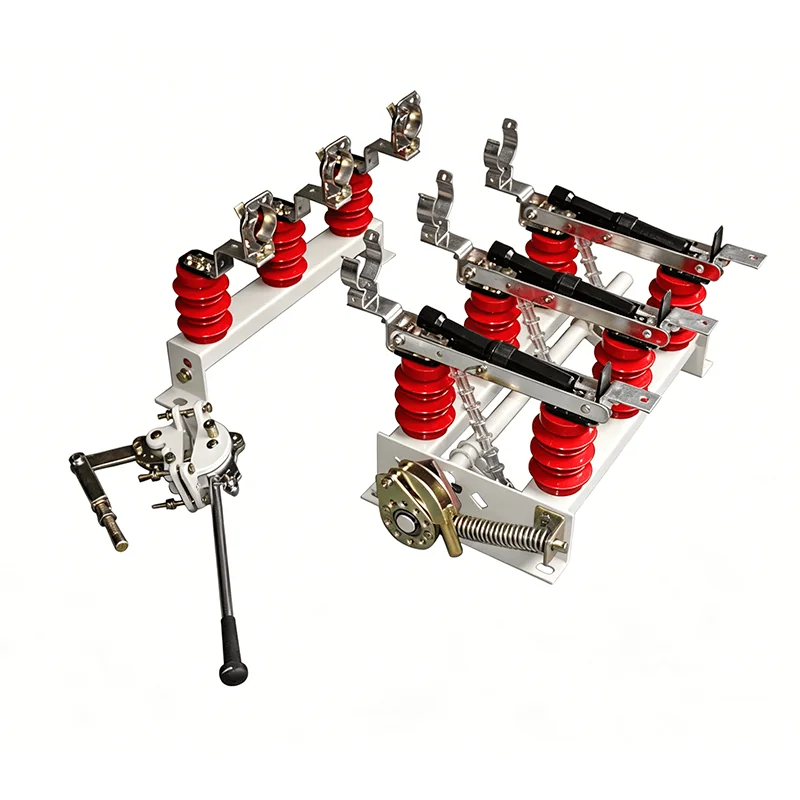

Product Images
Main Technical Parameters
Performance complies with GB/T3804 and IEC 60265.
| No. | Item | Unit | 400A data | 630A data |
|---|---|---|---|---|
| 01 | Rated voltage | kV | 12 | 12 |
| 02 | Rated frequency | Hz | 50 | 50 |
| 03 | Rated current | A | 400 | 630 |
| 04 | Rated short-time withstand current (thermal stable) | kA | 12.5(4s) | 20(2s) |
| 05 | Rated peak withstand current (dynamic stable) | kA | 31.5 | 50 |
| 06 | Rated closed-loop breaking current | A | 400 | 630 |
| 07 | Rated active load breaking current | A | 400 | 630 |
| 08 | 5% rated active load breaking current | A | 20 | 31.5 |
| 09 | Rated cable charging breaking current | A | 10 | 10 |
| 10 | Rated no-load transformer breaking capacity | kVA | 1250 | 1250 |
| 11 | Rated short-circuit making current | kA | 31.5 | 50 |
| 12 | Load current breaking times | times | 20(**** load) 35(60% load) 75(30% load) 80(5% load) | 20(**** load) 35(60% load) 75(30% load) 80(5% load) |
| 13 | 1 min power-frequency withstand voltage (r.m.s.) | kV | 42 to ground/phase-to-phase | 42 to ground/phase-to-phase |
| 14 | Power-frequency withstand voltage (across isolating gap) | kV | 48 | 48 |
| 15 | Lightning impulse withstand voltage (peak) | kV | 75 to ground/phase-to-phase, 85 across isolating gap | 75 to ground/phase-to-phase, 85 across isolating gap |
| 16 | Opening/closing operating torque (force) | N·m (N) | 90(180) | 100(200) |
Note: 400A and 630A in the table are two rated current ratings; 'R' indicates a switch-fuse combination that can interrupt short-circuit current for protection.
Outline and Mounting Dimensions
1-base frame, 2-post insulator, 3-support fuse terminal block, 4-contact blade, 5-arc-extinguishing tube, 6-torsion spring and lock shaft, 7-guide plate, 8-contact seat terminal block, 9-link rod, 10-rotation shaft, 11-spring energy-storage mechanism, 12-operating disk.
