Product Overview

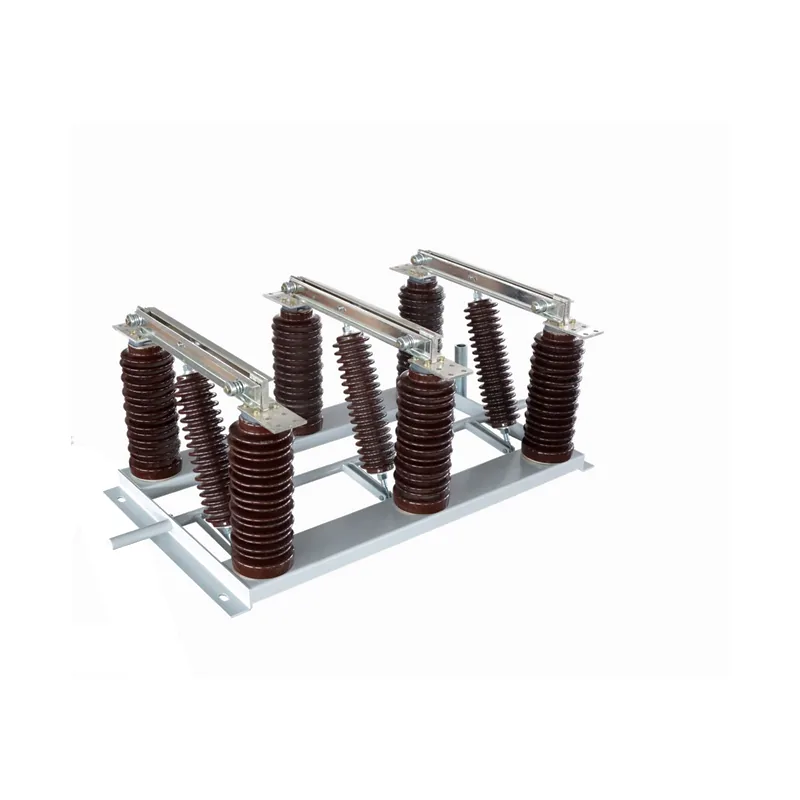

GN27-40.5 Indoor High-voltage Disconnector is a new type of product used in 33kV/35kV power systems of rated voltage 40.5 kV, AC 50 Hz, for opening and closing circuits that are live but unloaded; it is a replacement product designed and produced to supersede older products. It can be used with high-voltage switchgear or independently, and is fitted with a CS6-2 operating mechanism. All versions adopt a reinforced insulation design and can be used in class II polluted sites. The series is of vertical-rotating blade type with a three-phase common base. The fixed contact on the break side is designed as a swinging multi-finger contact, offering the advantages of low contact pressure per finger, low wear, a large heat-dissipation area and low operating torque; in addition, large-creepage post insulators and pull-rod insulators provide high insulation performance and high mechanical strength. To meet various needs, flush-mounted, wall-through and earthing-blade versions are available. The series can be installed horizontally, vertically or inclined. These diverse installation methods enable the GN27-40.5 indoor high-voltage disconnector to suit the layout requirements of different high-voltage switchgear.
Main Technical Parameters
| Model | Rated voltage(kV) | Rated current(A) | Rated short-time withstand current (r.m.s./time) (kA/4 s) | Rated peak withstand current (kA) | Lightning impulse withstand voltage to earth (kV) | Lightning impulse withstand voltage across break (kV) | 1-min power-frequency withstand voltage to earth (kV) | 1-min power-frequency withstand voltage across break (kV) |
|---|---|---|---|---|---|---|---|---|
| GN27-40.5/630-20 | 40.5 | 630 | 20/4s | 50 | 185 | 215 | 95 | 115 |
| GN27-40.5/1250-31.5 | 40.5 | 1250 | 31.5/4s | 80 | 185 | 215 | 95 | 115 |
The table above lists the main technical parameters of the GN27-40.5 indoor high-voltage disconnector.
Structural Features
- Scientific and rational design with a novel structure;
- Multi-contact rotary engagement with good self-cleaning ability, improving heat dissipation;
- Contacts arranged in two planes: low operating torque, high contact pressure and easy adjustment;
- Long creepage distance and reinforced insulation, with withstand voltages meeting the highest requirements;
- Bearings added on the rotating shaft: longer service life and light operation.

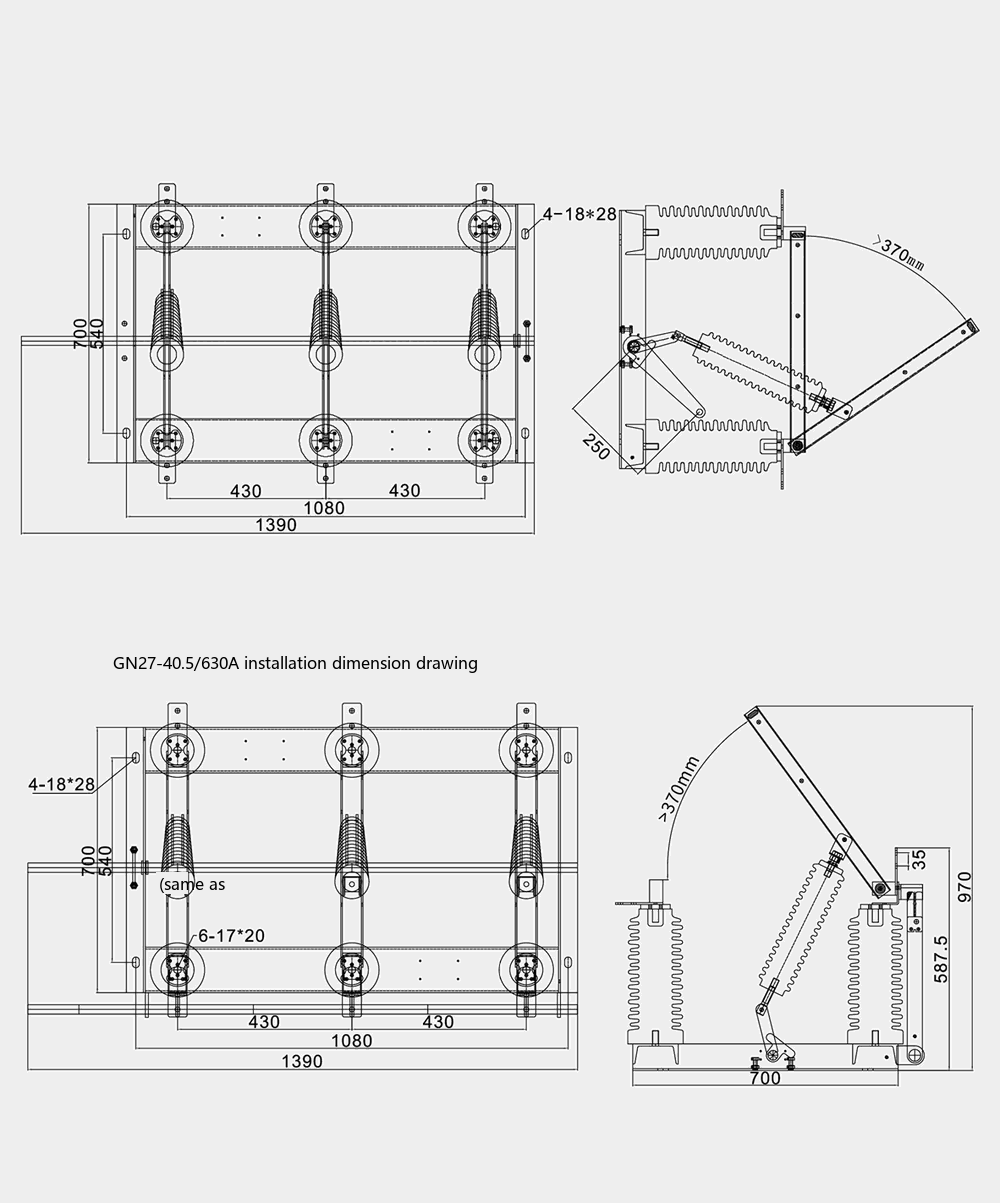

Outline & Installation Dimensions
Service Conditions
- Altitude: not exceeding 1000 m;
- Ambient air temperature: upper limit +40℃, lower limit -25℃;
- Relative humidity: daily average not more than 95%, monthly average not more than 90%;
- Seismic intensity not exceeding degree 8;
- Free from fire, explosion hazard, heavy pollution, chemical corrosion and violent vibration.
