10kV Indoor Vacuum Circuit Breaker: VS1/ZN63 Selection and Application Guide

Why Vacuum Interruption

In the 10 kV distribution class the vacuum circuit breaker (VCB) has largely replaced oil and SF6 designs. The vacuum interrupter extinguishes the arc in a sealed ceramic envelope, so the interrupting medium never needs maintenance and the breaker is suitable for the high operating frequencies found in capacitor switching, arc furnaces and wind-farm collector circuits. The VS1 and ZN63 families are the two most common indoor, withdrawable types used in metal-clad switchgear.

Construction

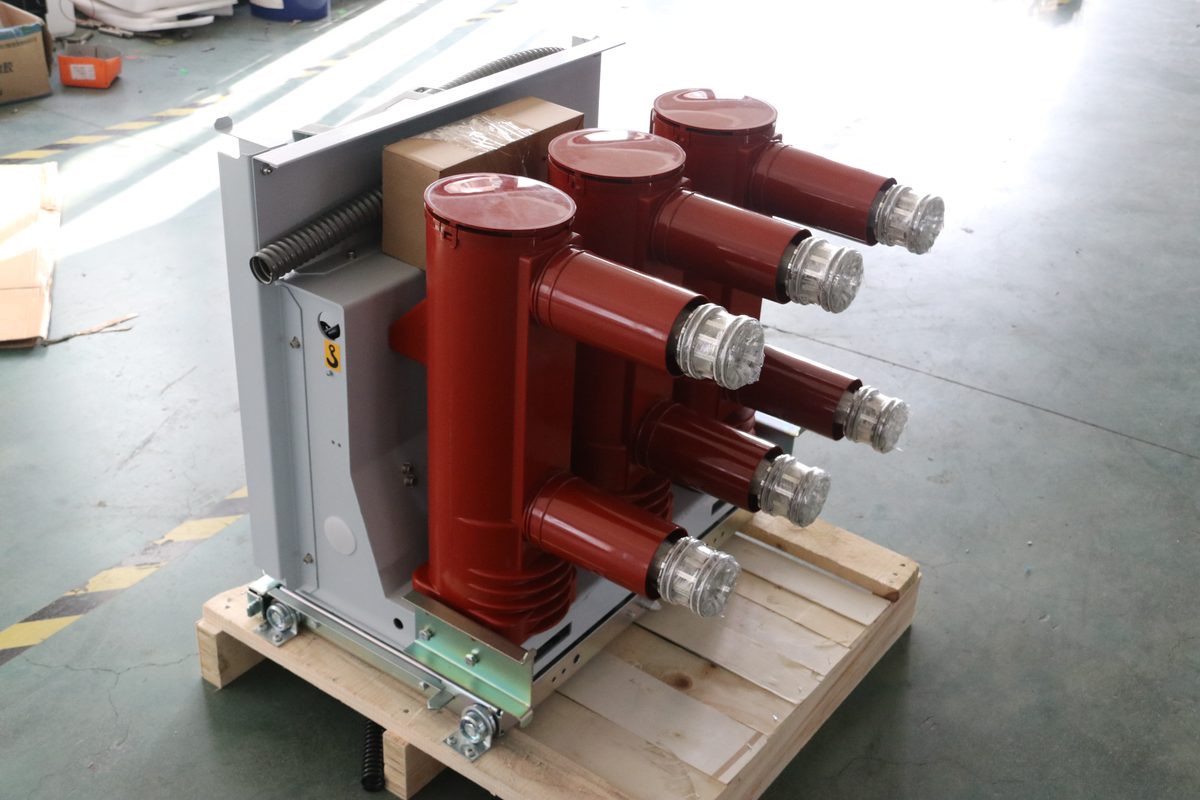

A 10 kV VCB is built from three vacuum interrupters, each cast into an epoxy-resin pole that also provides the insulation to earth and between phases. A common shaft couples the three poles to a spring or magnetic actuator mechanism. The withdrawable version carries the breaker on a chassis that can be racked between the service, test and isolated positions, with shutters that cover the busbar and cable spouts when the breaker is withdrawn.

Typical Ratings

Operating Mechanism: Which One

• Spring-charged mechanism (VS1 style): the workhorse for general distribution. Closing and opening springs are charged by a motor or by hand; a shunt trip releases the latch. Simple, robust and easy to maintain.
• Magnetic actuator (ZN63 style): a bistable permanent-magnet actuator replaces the mechanical latch. Far fewer moving parts, no trip coil to burn out, and excellent for the very high cycle counts of capacitor banks and traction duty.

Selection Steps

• Fix the rated voltage from the system nominal voltage plus the insulation coordination requirement — 12 kV class covers all 10 kV systems.
• Choose the rated current from the maximum continuous current of the circuit, derated for the switchgear enclosure temperature rise.
• Choose the short-circuit rating from the prospective fault level; for a 10 kV distribution substation 20–25 kA is the usual band, rising to 31.5 kA or 40 kA close to the source.
• Confirm the mechanical and electrical life against the expected switching frequency: capacitor switching and reactor circuits need a higher electrical life.
• Check the auxiliary supply voltage, trip coil rating and the number of auxiliary contacts needed by the protection and interlocking scheme.

Application Notes

For capacitor-bank switching, specify a breaker with a restrike-free interrupter and, where required, pre-insertion resistors. For motor circuits, verify the breaker can withstand the starting current and the higher transient recovery voltage. In every case the breaker must be interlocked with the upstream disconnector and the downstream earthing switch so that the cubicle cannot be earthed while the circuit is live.

FAQ

How do I know when to replace the vacuum interrupter?
Monitor the contact erosion indicator or the accumulated breaking current. Once the manufacturer's rated cumulative breaking current is reached, replace the interrupter — the vacuum itself does not age, but the contact surfaces do.

Can a VS1 breaker be operated by hand in an emergency?
Yes. The spring can be charged manually and the close/trip buttons operated locally, provided the control supply for tripping is available.
