GW9-12G Outdoor High Voltage Disconnector: Selection, Ratings and Installation Guide

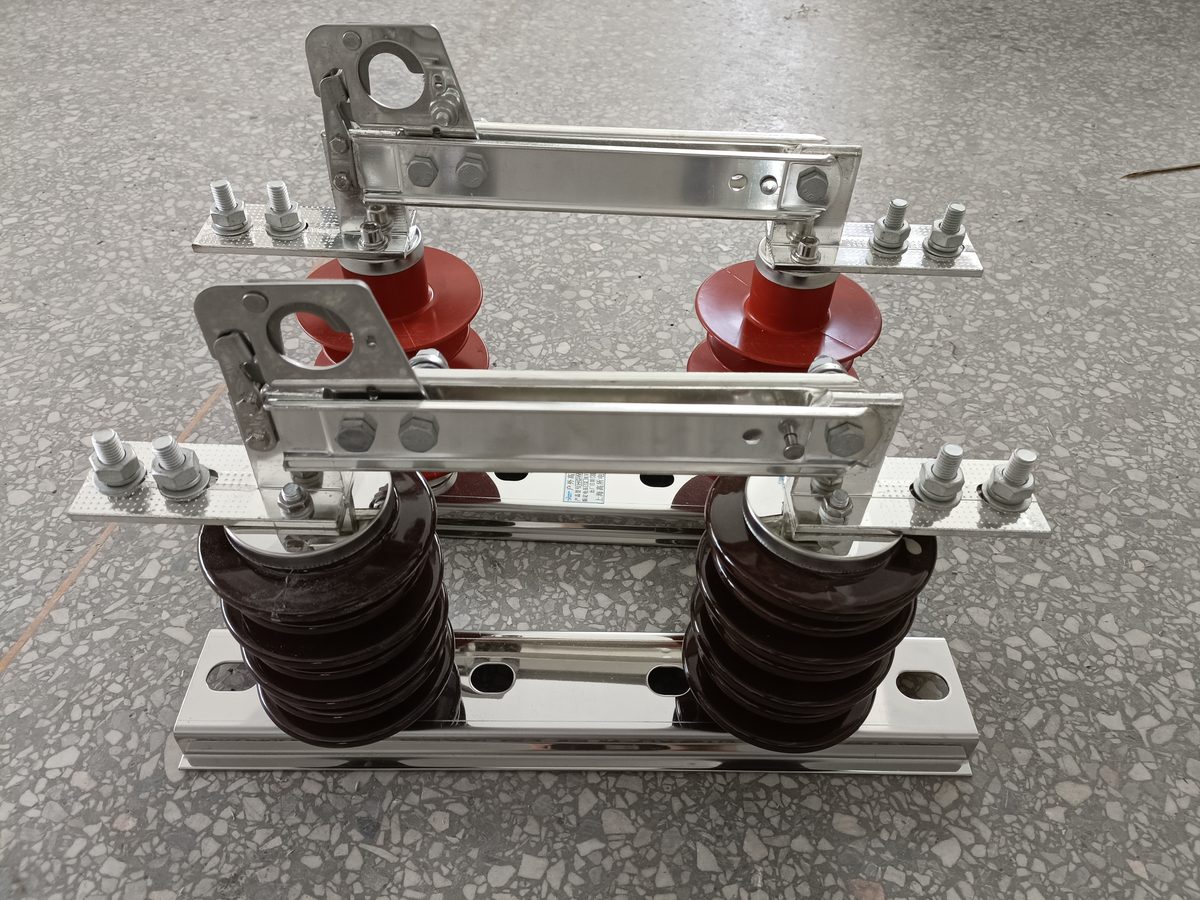

What the GW9-12G Disconnector Is

The GW9-12G is a three-phase, outdoor, AC high-voltage disconnector (isolating switch) for nominal 12 kV systems. Its job is not to interrupt load or fault current, but to establish a visible air gap that isolates a line section, transformer or switchgear bay so that maintenance can be carried out safely. In an overhead distribution network the disconnector is normally operated only after the upstream circuit breaker or load switch has already cleared the current.

Working Principle

The GW9-12G is a double-break, centre-rotating type disconnector. A single rotating porcelain or composite insulator drives two contact blades, so one movement opens both breaks at the same time. The blade movement is transmitted through a galvanised steel frame, which keeps the phase spacing stable and allows ganged three-phase operation through a common shaft. Because the contact opens in air, an arc is only possible if the operator mistakenly opens the switch on load — the reason that mechanical interlocks between the disconnector and the associated breaker are mandatory.

Typical Ratings

Key Selection Parameters

• Rated current: size the disconnector for the maximum continuous current of the bay, not the transformer nameplate, and allow for future load growth.
• Short-circuit level: the 4-second short-time current must be equal to or greater than the prospective fault current at the point of installation, and the peak value must cover the asymmetrical first-cycle current.
• Insulation level: for 12 kV equipment use 42 kV power-frequency and 75 kV impulse; in heavily polluted or coastal sites increase the creepage distance or choose a composite-insulator version.
• Operating mechanism: manual hook-stick operation is standard; motor operation is available where remote or ganged operation is required.
• Auxiliary contacts: fit position contacts if the switch state has to be fed back to a SCADA or interlocking circuit.

Installation and Commissioning

• Check that the frame is level and that the three phases are aligned; a twisted frame is the most common cause of a blade that does not seat properly.
• Adjust the contact pressure until the blade closes with a firm, positive action and the over-centre spring snaps home at the end of travel.
• Verify the contact alignment with a feeler gauge or by the manufacturer's measured resistance value — a high contact resistance is a hidden heat source.
• Measure the insulation resistance of each pole before energisation and record the value for comparison at the next maintenance.
• Confirm the interlock: with the disconnector closed, the associated breaker must be prevented from being closed into an earthed condition, and the earthing switch must not be operable while the disconnector is live.

Maintenance

Inspect the contact surfaces for pitting or discolouration at every scheduled outage, clean and re-grease the moving parts with a high-temperature contact grease, and check the galvanised frame for corrosion. Composite insulators should be wiped clean; porcelain insulators should be checked for chips, since a chipped shed can flash over in wet, polluted conditions.

FAQ

Can a GW9-12G be opened on load?
No. It has no arc-quenching device. Opening it on load will draw an arc across the contacts and may destroy the switch. Always open the upstream breaker first.

How often should the contact resistance be measured?
At least once a year, and after any short-circuit event in the bay. A rising trend is more important than a single reading.
